Turret CNC Lathes
C04 CNC Lathe with Automatic Loading and Unloading
The C04 is a compact CNC lathe with a vertical turret-and-spindle layout and a feeding robot and conveyor listed as standard accessories. It features an 8-station turret, a 3.7 kW spindle motor, and a maximum bar-stock diameter of 34 mm.
- MOQ: 1 set
- Brand: SIPENG CNC — Tianjin, China
- Configuration: Tooling / bar feeder / parts collection / automation
- Quotation: reply within 24 hours
Specifications
| Maximum bar-stock diameter | 34 mm |
|---|---|
| Maximum machining diameter | 200 mm; 85 mm with automatic loading/unloading |
| Maximum machining length | 120 mm; 50 mm with automatic loading/unloading |
| CNC controller | Mitsubishi E80 / M80 (optional) |
| Spindle nose | A2-4 |
| Spindle motor power | 3.7 kW |
| Spindle speed | 60-4,000 rpm; 6,000 rpm optional |
| Toolholder height | 20 mm |
| Turret stations | 8 |
| X-axis travel | 145 mm |
| Z-axis travel | 145 mm |
| X-axis ball screw designation | 3210 |
| Z-axis ball screw designation | 3210 |
| Bed layout | Vertical turret-and-spindle arrangement; one-piece cast bed |
| Floor space | 1,505 x 1,608 mm |
| Overall height | 2,145 mm |
| Machine weight | 2,200 kg |
| Robot unloading cycle | 8 s; robot unloading cycle only, not the complete machining cycle |
Product Details
C04 CNC Lathe with Automatic Loading and Unloading
Machine Overview
The C04 is a compact CNC lathe with a vertical turret-and-spindle arrangement and a one-piece cast bed. Its standard-accessory list includes a feeding robot and conveyor. The machine has full internal guarding and a sheet-metal outer enclosure.
Machining Capacity
- Maximum bar-stock diameter: 34 mm
- Maximum machining diameter: 200 mm; 85 mm with automatic loading/unloading
- Maximum machining length: 120 mm; 50 mm with automatic loading/unloading
Technical Specifications
| CNC controller | Mitsubishi E80 / M80 (optional) |
|---|---|
| Spindle nose | A2-4 |
| Spindle motor power | 3.7 kW |
| Spindle speed | 60-4,000 rpm; 6,000 rpm optional |
| Toolholder height | 20 mm |
| Turret stations | 8 |
| X-axis travel | 145 mm |
| Z-axis travel | 145 mm |
| X-axis ball screw designation | 3210 |
| Z-axis ball screw designation | 3210 |
| Floor space | 1,505 × 1,608 mm |
| Overall height | 2,145 mm |
| Machine weight | 2,200 kg |
Standard Accessories
- Rotary cylinder × 1

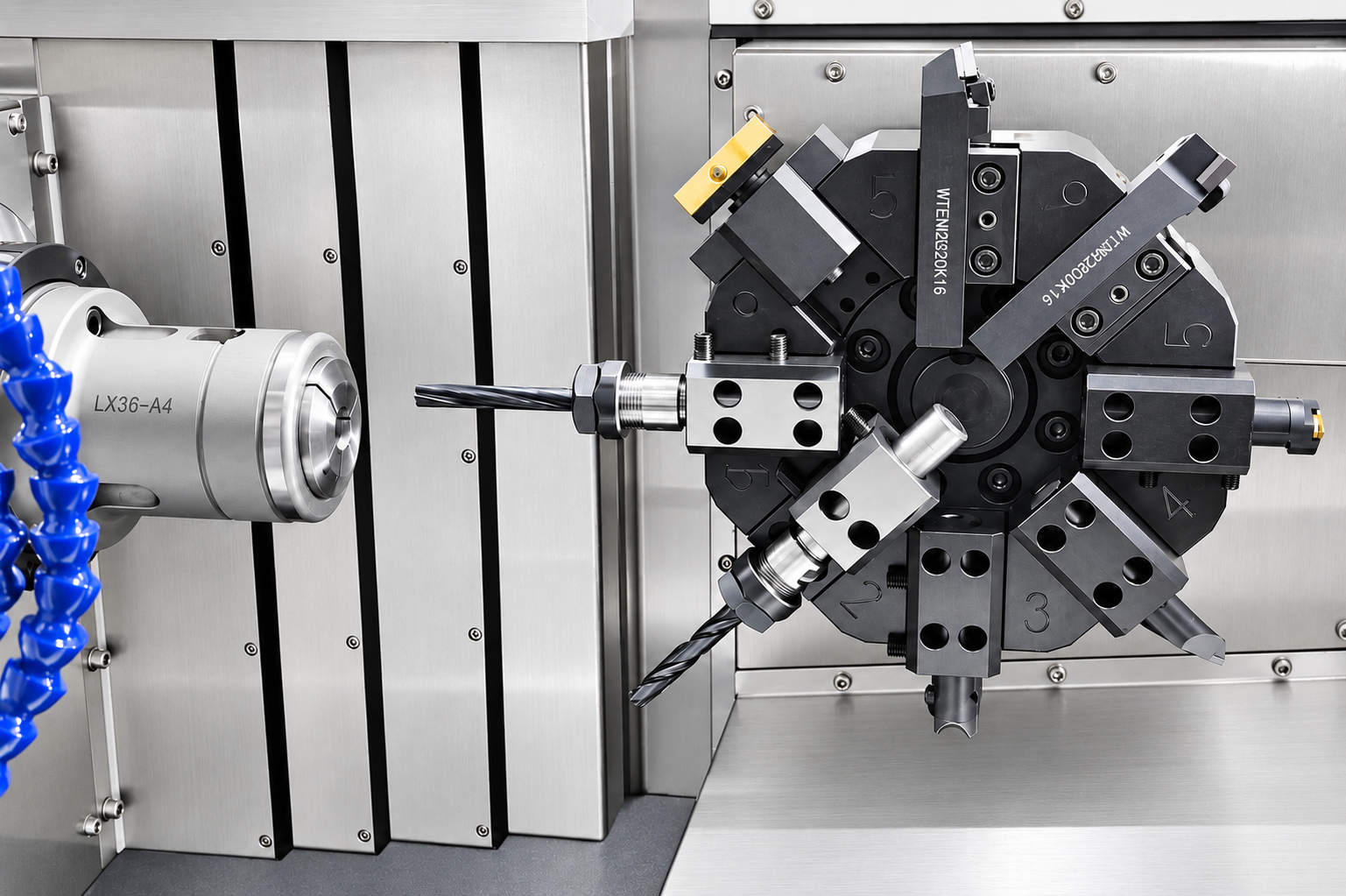

- 8-station turret toolholder × 1
- Boring-bar holders × 2
- Tool clamping blocks × 8
- Coolant pump and coolant tank
- Full sheet-metal enclosure
- Automatic lubrication system
- Feeding robot and conveyor
Optional Equipment
- Automatic bar feeder
- Automatic chip conveyor
- In-process measurement
- Automatic workpiece flipping mechanism for two-sided machining
- Through-spindle coolant
- Custom parts magazine and conveyor
Robot unloading cycle: The source document states an 8-second robot unloading cycle. This is not the complete machining cycle. Confirm the measurement conditions and cycle-time definition for the intended application.
Optional equipment and operating limits should be confirmed for the ordered configuration.
