SL205 / SL265 Swiss-Type CNC Turning Centers
Dual-channel Swiss-type CNC turning centers for precision machining of small parts from bar stock. The SL205 supports bar diameters up to Ø20 mm, while the SL265 supports up to Ø26 mm. Both models combine turning, milling and drilling capabilities, with guide-bushing and non-guide-bushing configurations.
- MOQ: 1 set
- Brand: SIPENG CNC — Tianjin, China
- Configuration: Tooling / bar feeder / parts collection / automation
- Quotation: reply within 24 hours
Specifications
| Models | SL205 / SL265 |
|---|---|
| Maximum bar diameter | SL205: Ø20 mm; SL265: Ø26 mm |
| Main spindle through-hole | SL205: Ø25 mm; SL265: Ø30 mm |
| Maximum machining length, non-guide-bushing | 2.5D; maximum 50 mm, both models |
| Maximum machining length, fixed guide bushing | 220 mm, optional, both models |
| Maximum machining length, rotating guide bushing | 180 mm, both models |
| Back spindle maximum bar diameter | SL205: Ø20 mm; SL265: Ø26 mm |
| Main spindle maximum drilling diameter | Ø10 mm |
| Main spindle maximum tapping capacity | M10 |
| Back spindle maximum drilling diameter | Ø10 mm |
| Back spindle maximum tapping capacity | M8 |
| Radial live-tool maximum drilling diameter | Ø8 mm |
| Radial live-tool maximum tapping capacity | M6 |
| Back live-tool maximum drilling diameter | Ø8 mm, optional |
| Back live-tool maximum tapping capacity | M6, optional |
| Main spindle speed | 10,000 rpm; 8,000 rpm with rotating guide bushing |
| Back spindle speed | 10,000 rpm |
| Radial live-tool speed | 5,000 rpm |
| Back live-tool speed | 6,000 rpm, optional |
| Rapid traverse | 24 m/min (X2, Y1, Z1, Z2); 20 m/min (X1) |
| Main spindle runout | ≤0.002 mm |
| Repeat positioning accuracy | ≤0.003 mm |
| External tool positions | 1 × Ø16 mm + 5 × Ø12 mm |
| End-machining tool positions | 4 × ER16 |
| Radial live-tool positions | 2 × ER11 + 2 × ER16 |
| Back-machining tool positions | 4 × ER16 + 1 × Ø20 mm |
| Main spindle motor | 4.2 kW |
| Back spindle motor | 3.1 kW |
| Direct-drive spindle motors | 1 kW (X1, X2, Y1, Z1); 0.75 kW (Z2) |
| Radial live-tool motor | 1 kW |
| Back live-tool motor | 0.75 kW, optional |
| Coolant pump | 0.4 kW |
| Machine weight | 2,400 kg |
| Machine dimensions (L × W × H) | 2,380 × 1,300 × 1,770 mm |
Product Details
Product Overview

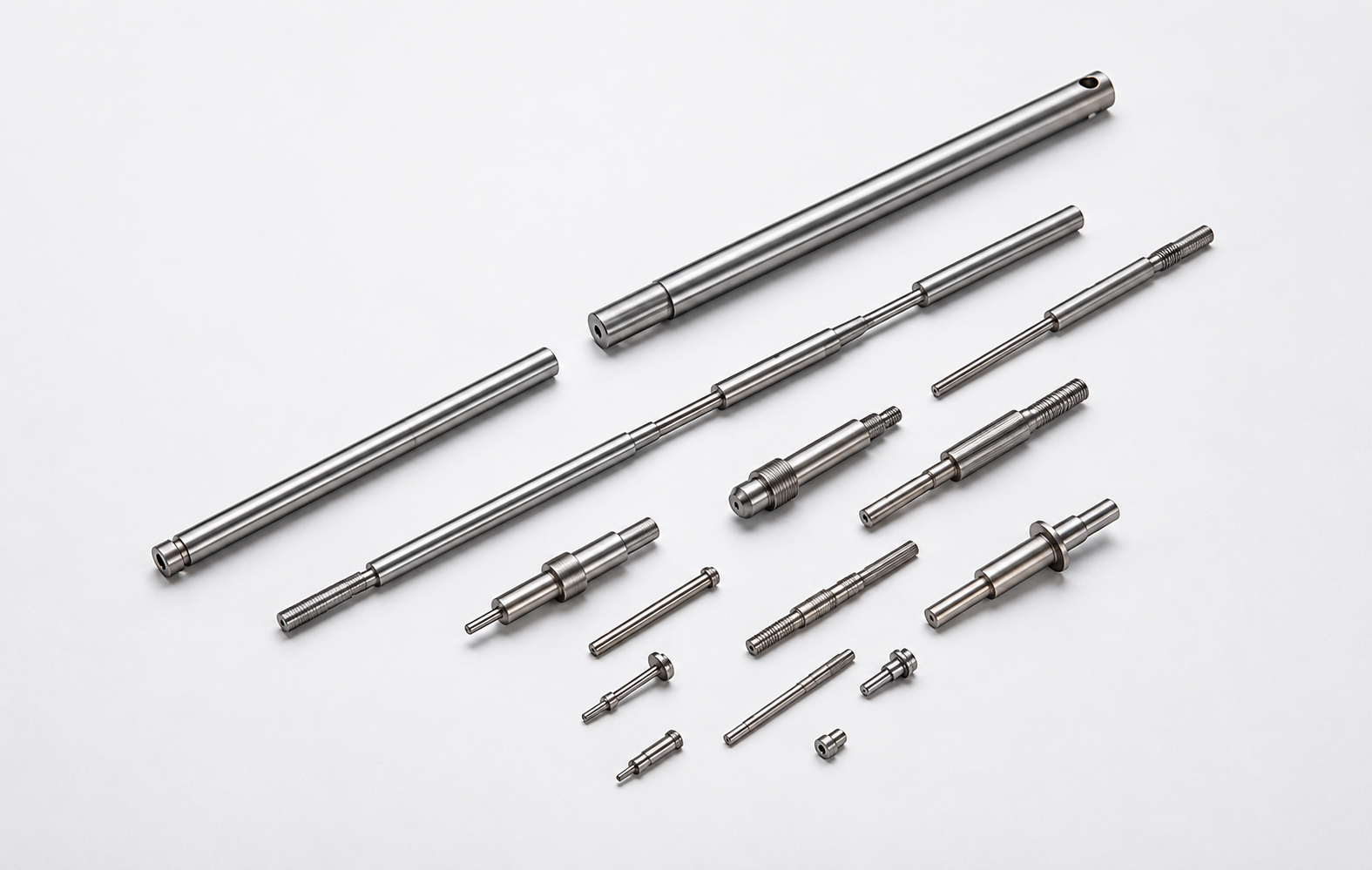

The SL205 and SL265 are dual-channel Swiss-type CNC turning centers designed for machining complex small precision parts and slender shaft components from bar stock. The SL205 accommodates bar diameters up to Ø20 mm, and the SL265 up to Ø26 mm.
Key Features
- Combined turning, milling and drilling operations with spindle indexing and live tooling.

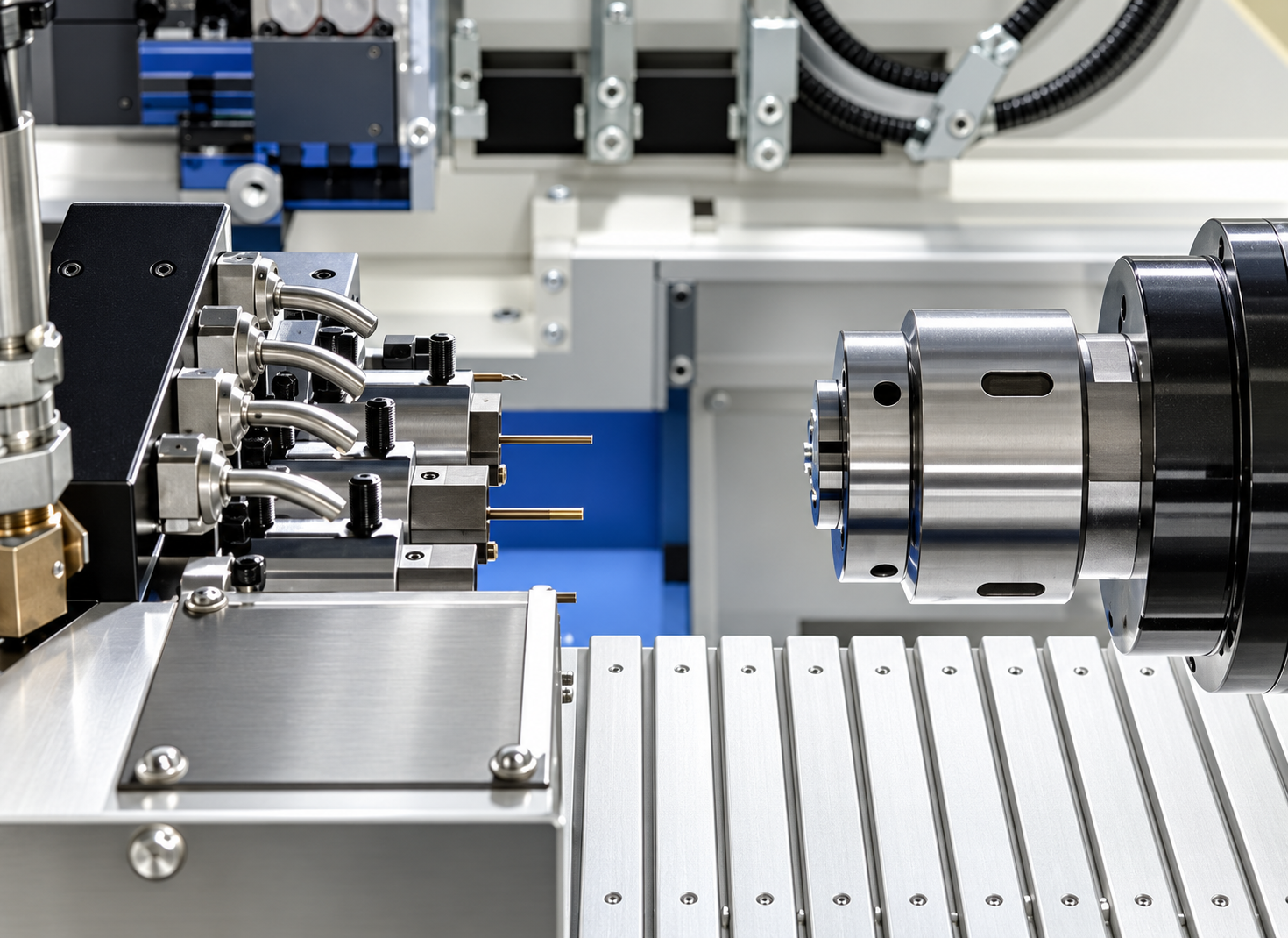

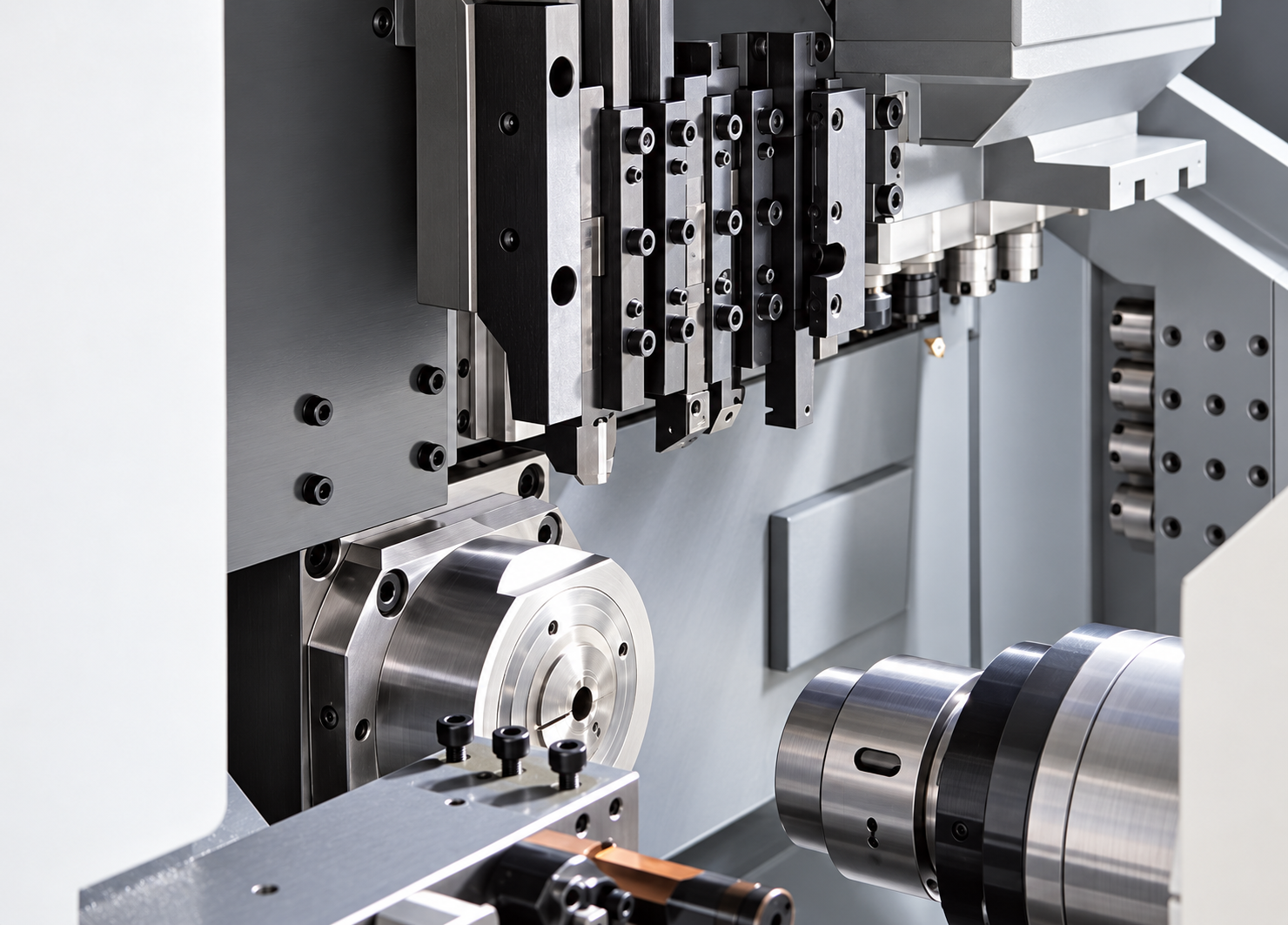

- Horizontal linear tool layout designed to support chip evacuation and compact machine setup.
- Quick change between guide-bushing and non-guide-bushing configurations.
- One-piece Meehanite cast-iron bed and slides, imported precision angular-contact spindle bearings, and servo-driven feed axes.
- Standard Taiwan Syntec dual-channel CNC control. FANUC or Mitsubishi control is available on request.
- Automatic bar feeding is available.
Applications
Suitable for evaluating small precision components used in communications, electronics, automotive, pneumatic and hydraulic equipment, medical devices, instrumentation and aerospace. Final process suitability depends on the part drawing, material, tolerances and tooling requirements.
Configuration note: Specifications and optional equipment vary by model and configuration. Please confirm the required guide-bushing arrangement, live tooling and CNC control before ordering.
Interested in this product?
Send your requirement and quantity — we reply with price, lead time and technical advice within 24 hours.
Related Products
Frequently Asked Questions
I can provide drawings, material and blank specifications. Can you recommend the right machine and machining route?
Yes — that is exactly how we start. Send the drawing (PDF, DWG or STEP), material grade, blank dimensions, key tolerances and your target output. Our engineers review the part geometry and process, then recommend a machine model, fixture concept and machining route, together with an estimated cycle time. We reply with a written evaluation and quotation within 24 hours.
Can my part be completed in one setup? Which operations would need other equipment?
It depends on geometry, size and accuracy, so we answer this per part, not in general. After reviewing your drawing we reply in writing: which operations are completed in one clamping, which need a second operation or a different machine, and what the recommended process chain looks like. If a part genuinely needs two setups, we say so instead of promising one-setup results.
Are cutting tools, fixtures, bar feeder and CNC programs included?
They can all be included — the delivery scope is defined line by line in our quotation. A typical turnkey package covers the machine, fixtures designed for your parts, the tooling package, bar feeder integration and CAM programs for your parts, plus a recommended consumables list. If you prefer machine only, or want to keep your existing tooling, the scope is adjusted and every included and excluded item is listed before you sign.
How do you evaluate the machining time for my parts?
We build the process route first, then calculate cycle time from tool paths and cutting data, and cross-check it with CAM simulation. The estimated time per part is stated in the proposal. During trial cutting the actual cycle time is measured; the measured result — not the paper estimate — is the basis for acceptance, so the number you plan production around is a verified one.
Can you run trial cutting with my own material?
Yes, and we recommend it. You send material or blanks; after the machine, fixtures and programs are ready we machine your parts, record cutting parameters, cycle time and tool behaviour, and provide a trial report with measurement results, photos and video. The trial schedule is agreed with you in advance, so you can attend in person or follow it remotely.
