SL325 / SL326 / SL385 / SL386 Swiss-Type CNC Turning Centers

Four-model Swiss-type CNC turning center series for precision machining of complex, slender parts from bar stock. Choose Ø32 mm capacity with the SL325 / SL326 or Ø38 mm capacity with the SL385 / SL386. Turning, milling and drilling capabilities, flexible guide-bushing configurations and optional bar-feeding automation.

MOQ: 1 set
Brand: SIPENG CNC — Tianjin, China
Configuration: Tooling / bar feeder / parts collection / automation
Quotation: reply within 24 hours

WhatsApp Quote Send Inquiry Email Us

Specifications

Models	SL325 / SL326 / SL385 / SL386
Maximum bar stock diameter	SL325: Ø32 mm; SL326: Ø32 mm; SL385: Ø38 mm; SL386: Ø38 mm
Main spindle through-hole diameter	SL325: Ø37 mm; SL326: Ø37 mm; SL385: Ø39 mm; SL386: Ø39 mm
Maximum machining length, no guide bushing	SL325 / SL326: 2.5D, max. 80 mm; SL385 / SL386: 2.5D, max. 90 mm
Maximum machining length, rotating guide bushing	310 mm, all models
Back spindle maximum bar diameter	SL325: Ø32 mm; SL326: Ø32 mm; SL385: Ø38 mm; SL386: Ø38 mm
Main spindle maximum drilling diameter	Ø13 mm, all models
Main spindle maximum tapping size	M12, all models
Back spindle maximum drilling diameter	Ø10 mm, all models
Back spindle maximum tapping size	M10, all models
Radial live-tool maximum drilling diameter	Ø10 mm, all models
Radial live-tool maximum tapping size	M8, all models
Back live-tool maximum drilling diameter	Ø8 mm; optional on SL325 / SL385; standard on SL326 / SL386
Back live-tool maximum tapping size	M6; optional on SL325 / SL385; standard on SL326 / SL386
Main spindle speed	SL325 / SL326: 8,000 rpm (6,000 rpm with rotating guide bushing); SL385 / SL386: 6,000 rpm (rotary hydraulic cylinder configuration)
Back spindle speed	8,000 rpm, all models
Radial live-tool speed	6,000 rpm, all models
Back live-tool speed	6,000 rpm; optional on SL325 / SL385; standard on SL326 / SL386
Rapid traverse, common axes	SL325 / SL326: 30 m/min (X2, Y1, Z1, Z2); SL385 / SL386: 30 m/min (X2, Y1, Z2)
Rapid traverse, additional axes	SL325: 24 m/min (X1); SL326: 24 m/min (X1, Y2); SL385: 24 m/min (X1, Z1); SL386: 24 m/min (X1, Y2, Z1)
Main spindle runout	≤0.002 mm, all models
Repeat positioning accuracy	≤0.003 mm, all models
External tools	SL325 / SL326: 6 × □16; SL385 / SL386: 1 × □20 + 5 × □16
End-machining tools	4 × ER20, all models
Radial live tools	1 × ER20 + 3 × ER16, all models
Deep-hole tool holders	2 × ER16, all models
Back-machining tools	4 × ER16, all models
Back live tools	SL325 / SL385: optional; SL326 / SL386: 4 × ER16
Main spindle motor	6.3 kW, all models
Back spindle motor	4.2 kW, all models
Linear-drive axis motors	1.1 kW (X1, X2, Y1, Z1, Z2), all models
Y2 axis motor	SL326 / SL386: 1 kW; not listed for SL325 / SL385
Radial live-tool motor	1.1 kW, all models
Back live-tool motor	1 kW; optional on SL325 / SL385; standard on SL326 / SL386
Coolant pump	0.4 kW, all models
Machine weight	3,750 kg, all models
Overall dimensions (L × W × H)	SL325 / SL326: 2,960 × 1,660 × 1,920 mm; SL385 / SL386: 3,100 × 1,660 × 1,920 mm

Product Details

Product Overview

The SL325, SL326, SL385 and SL386 are Swiss-type CNC turning centers designed for complex, small-diameter and slender precision components. Select the Ø32 mm SL325 / SL326 models or the Ø38 mm SL385 / SL386 models according to the workpiece and process requirements.

Key Features

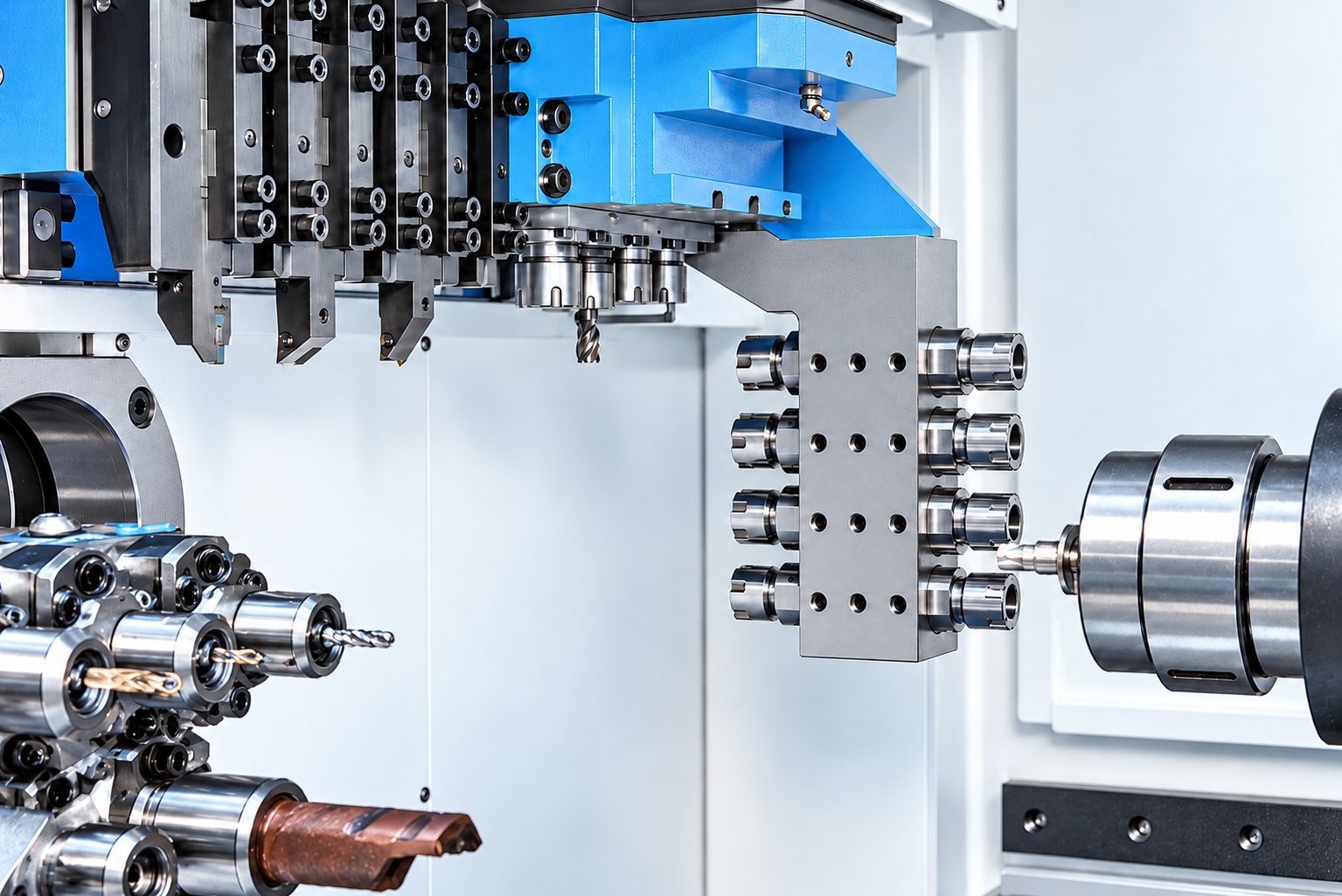

Radial live tooling and spindle indexing support combined turning, milling and drilling.
Guide-bushing configurations provide flexibility for different part lengths and machining processes.
Standard Taiwan Syntec dual-channel CNC control; FANUC or Mitsubishi controls are available as options.
High-rigidity Meehanite cast-iron bed and slides.
Imported angular-contact spindle bearings, servo feed axes, precision screw and guideway components, and roller guides at key positions.
Optional bar feeder supports continuous production.

Applications

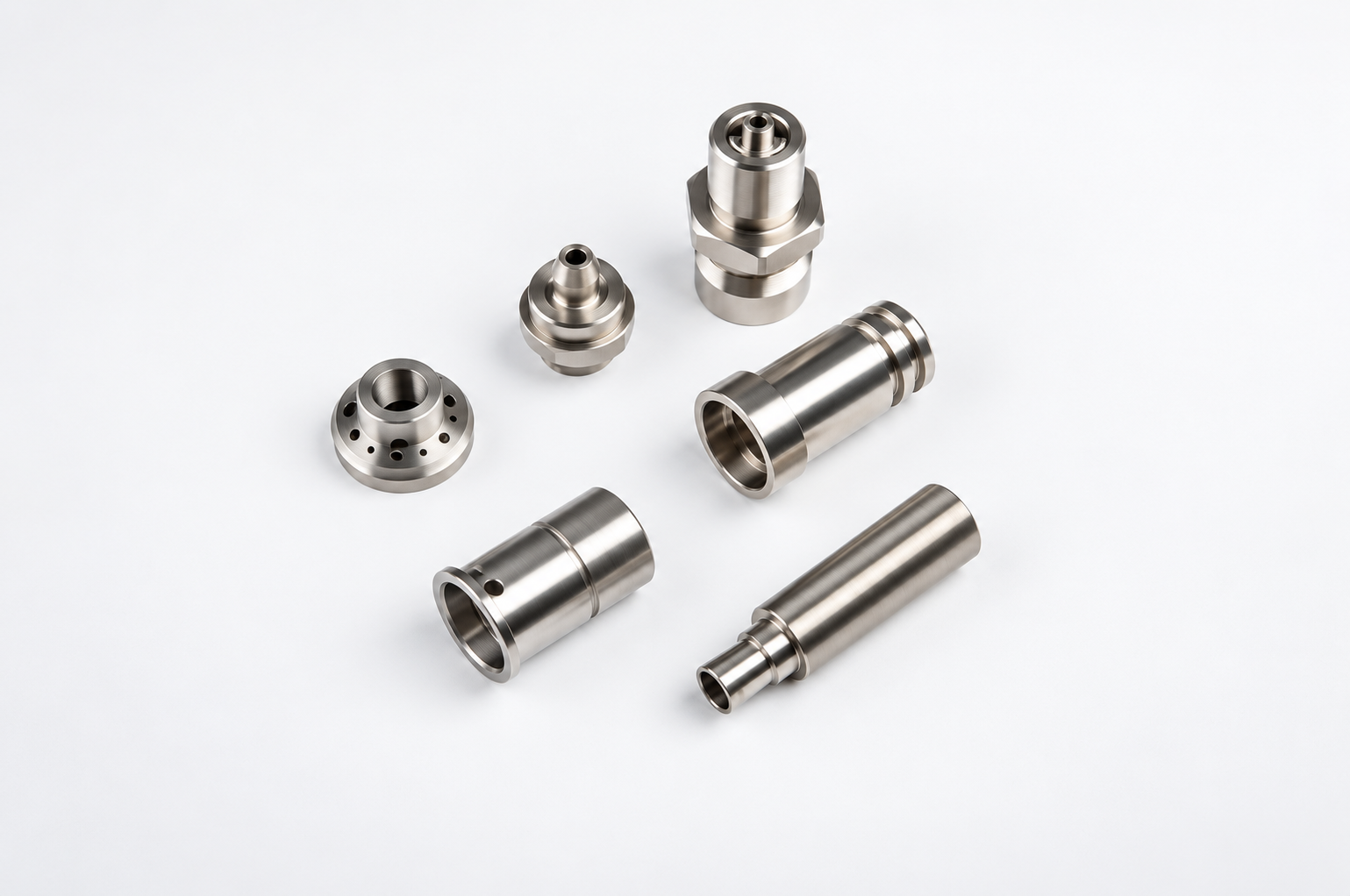

Designed for evaluating and machining complex, small-diameter precision parts and slender shafts for communications, electronics, automotive, pneumatic and hydraulic equipment, medical devices, instrumentation and aerospace applications. Confirm suitability against the part drawing, material, tolerances and production plan.

Configuration note: Tooling, live-tool stations and some machining functions differ by model. Optional items and final specifications should be confirmed for the selected machine configuration before ordering.
