YB100 Series Precision CNC Horizontal Gear Hobbing Machines
The YB100 series comprises precision CNC horizontal gear hobbing machines for small- and medium-diameter spur and helical gears. The YB100, YB100II and YB100III share a maximum workpiece diameter of Ø100 mm and a maximum module of 3 mm, with model-specific work-spindle and CNC configurations.
- MOQ: 1 set
- Brand: SIPENG CNC — Tianjin, China
- Configuration: Tooling / bar feeder / parts collection / automation
- Quotation: reply within 24 hours
Specifications
| Models | YB100 / YB100II / YB100III |
|---|---|
| Machine type | CNC horizontal gear hobbing machine |
| Controlled axes | X, Y, Z, W, A, B and C |
| Simultaneous control | Four-axis simultaneous control |
| Maximum workpiece diameter | Ø100 mm, all models |
| Maximum module | 3 mm, all models |
| Maximum slide travel | 220 mm, all models |
| Tooth-count range | 3–999 teeth, all models |
| Hob-head swivel angle | ±45°, all models |
| Maximum hob diameter | Ø80 mm, all models |
| Hob arbor diameter | Ø13 mm, all models |
| X / Z rapid traverse speed | 10 m/min, all models |
| Work spindle maximum speed | YB100: 1,000 r/min (torque motor); YB100II: 500 r/min; YB100III: 500 r/min |
| Work spindle rated torque | YB100: 95 N·m; YB100II: 20 N·m; YB100III: 18.6 N·m |
| Work spindle configuration | YB100: FANUC torque motor with oil-cooling unit; YB100II / YB100III: precision gear transmission |
| Hob spindle maximum speed | YB100 / YB100II: 5,000 r/min; YB100III: 4,000 r/min |
| Hob spindle rated power | YB100 / YB100II: 5.5 kW; YB100III: 3.9 kW |
| X / Z servo motor rated torque | YB100 / YB100II: 11 N·m; YB100III: 8.34 N·m |
| Y servo motor rated torque | YB100 / YB100II: 3.5 N·m; YB100III: 3.2 N·m |
| W servo motor rated torque | YB100 / YB100II: 7 N·m; YB100III: 5.39 N·m |
| A servo motor rated torque | YB100 / YB100II: 11 N·m; YB100III: 8.34 N·m |
| CNC system | YB100 / YB100II: FANUC; YB100III: Syntec |
| Spindle and servo motors | YB100 / YB100II: FANUC; YB100III: Syntec |
| Gear accuracy | Grade 6 per GB/T 10095-2001 for spur and helical gears with module ≤1.5 mm |
| Machine weight | 5,000 kg, all models |
| Overall dimensions (L × W × H) | 2,200 × 2,000 × 2,200 mm, all models |
Product Details
Product Overview

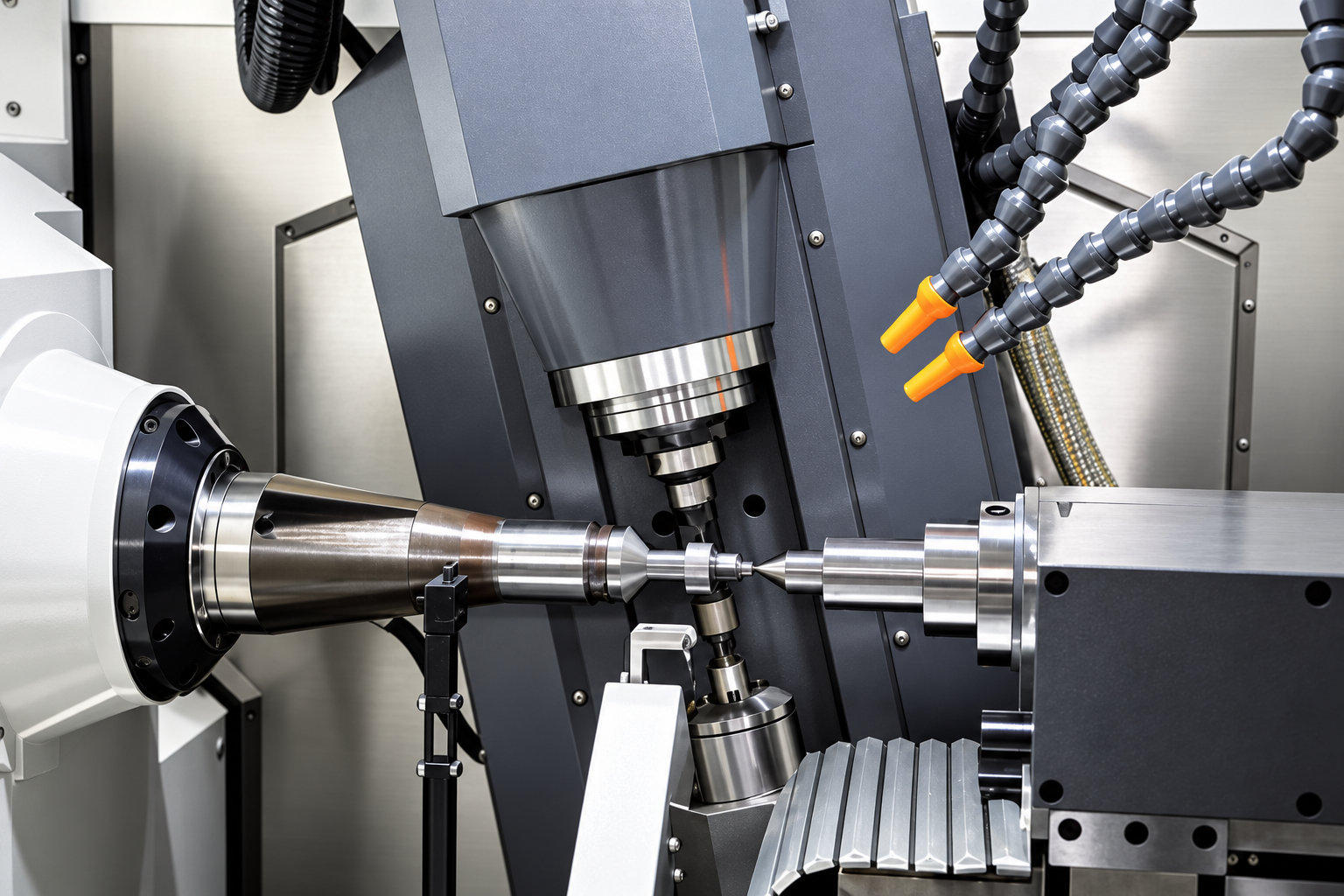

The YB100 series is designed for efficient, precision hobbing of small- and medium-diameter cylindrical spur and helical gears. The seven-axis platform controls the X, Y, Z, W, A, B and C axes, with four-axis simultaneous control. Maximum workpiece diameter is Ø100 mm and maximum module is 3 mm.
Key Features
- High-rigidity machine structure with precision linear roller guides.
- Standard CNC functions include linear interpolation, travel-limit protection, an electronic gearbox and a retract function.
- The YB100 uses a FANUC torque-motor work spindle and original FANUC encoder for backlash-free transmission, with an oil-cooling unit.
- The YB100II and YB100III use precision gear-driven work spindles.
- YB100 and YB100II use FANUC CNC; YB100III uses Syntec CNC.

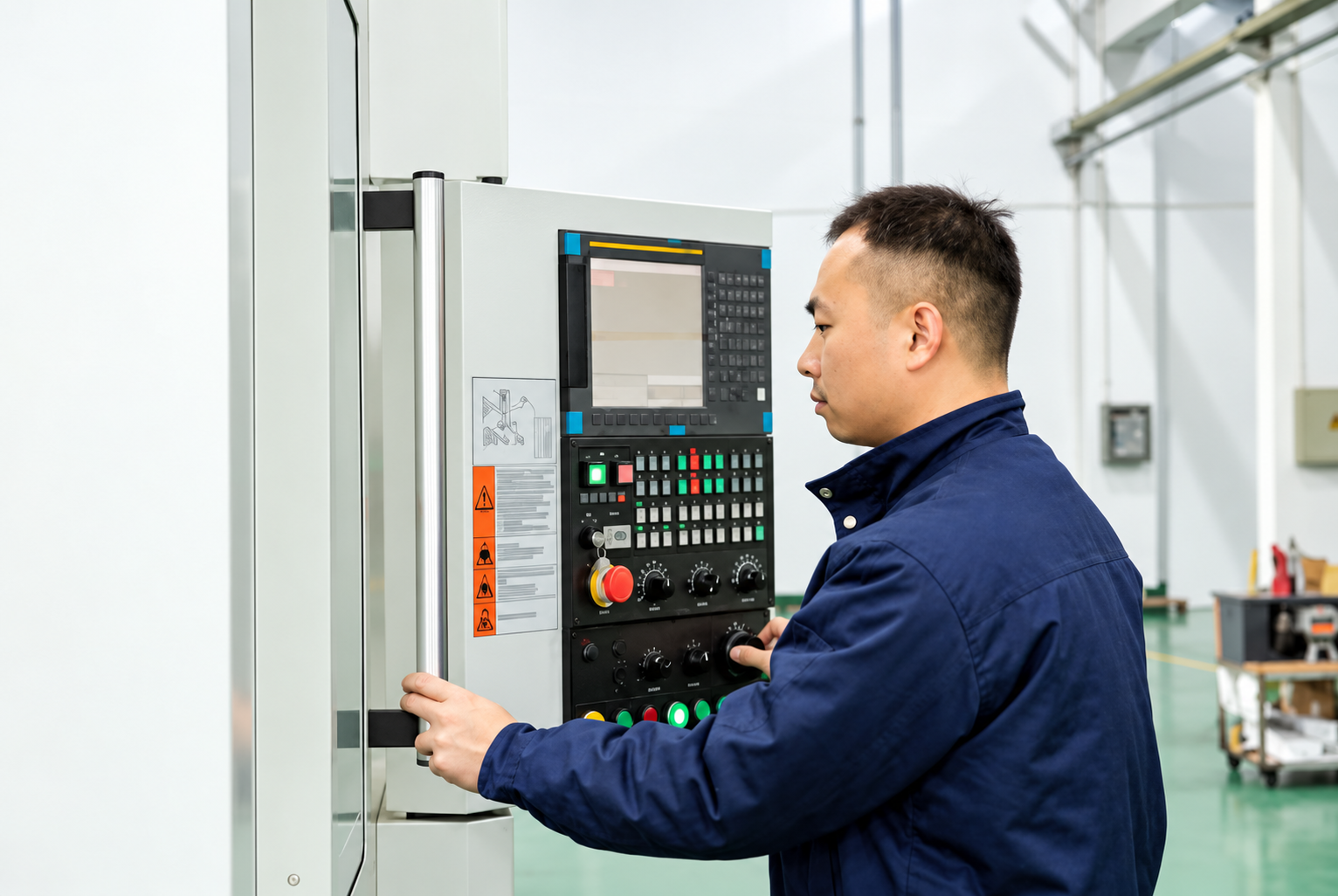

- The graphical operator interface can be adapted through secondary development to support automated programming and machining.
Applications

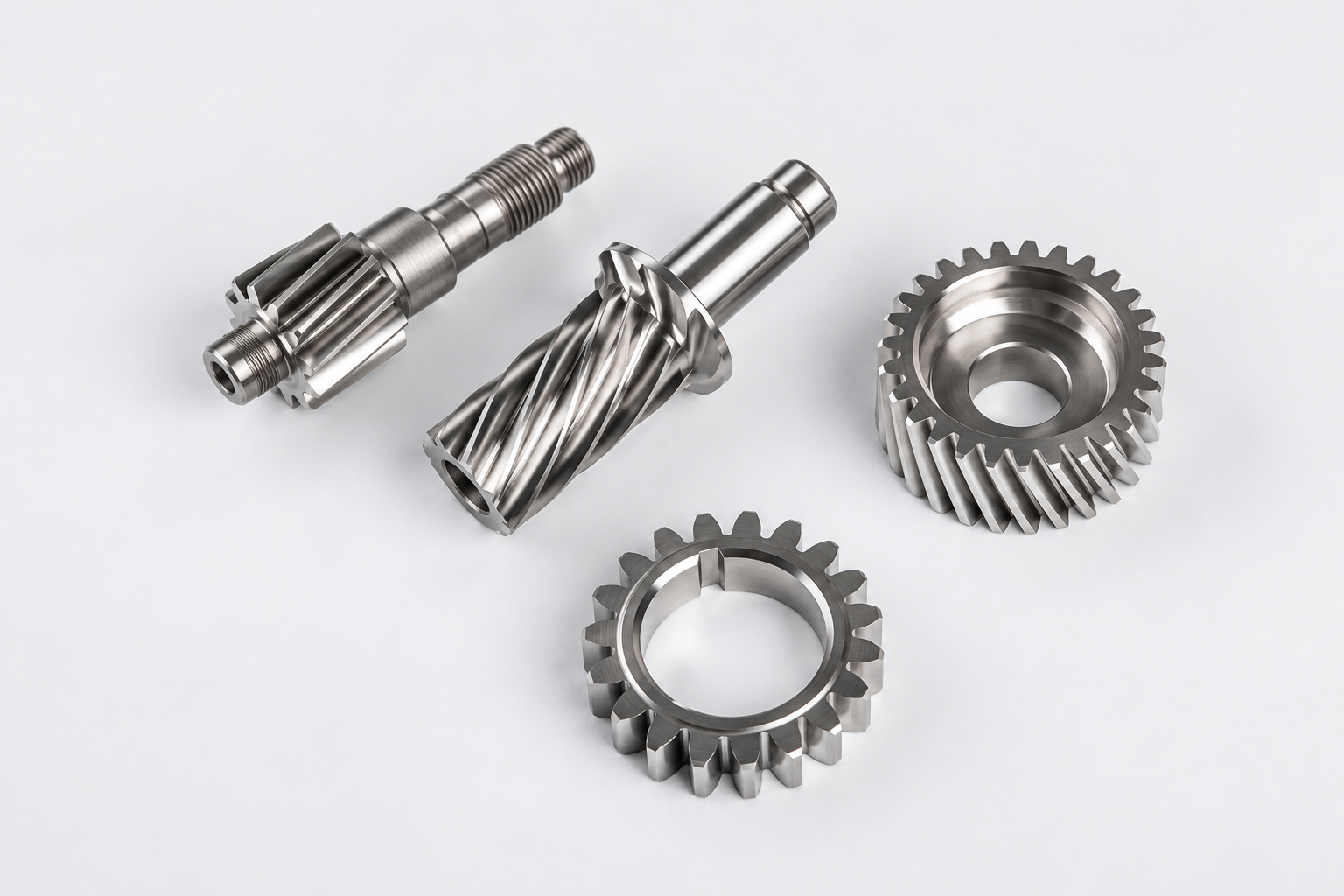

Designed for hobbing cylindrical spur and helical gears. The supplied specification states Grade 6 gear accuracy per GB/T 10095-2001 for spur and helical gears with module ≤1.5 mm. Applications involving hardened gear surfaces require workpiece, tooling and process validation.
Configuration note: Work-spindle speed, torque, hob-spindle performance, servo ratings and CNC system vary by model. Confirm the selected model and process capability for the intended workpiece with the manufacturer before ordering.
