YB80 Precision CNC Horizontal Gear Hobbing Machine

The YB80 is a six-axis CNC horizontal gear hobbing machine with four-axis simultaneous control, designed for efficient machining of small spur and helical gears. It supports workpieces up to Ø100 mm in diameter, module up to 3 mm and workpiece length up to 220 mm.

MOQ: 1 set
Brand: SIPENG CNC — Tianjin, China
Configuration: Tooling / bar feeder / parts collection / automation
Quotation: reply within 24 hours

WhatsApp Quote Send Inquiry Email Us

Specifications

Model	YB80
Machine type	CNC horizontal gear hobbing machine
Axis configuration	Six axes; four-axis simultaneous control
Maximum workpiece diameter	Ø100 mm
Maximum module	3 mm
Maximum workpiece length	220 mm
Tooth-count range	3–999 teeth
Hob-head swivel angle	±45°
Maximum hob diameter	Ø80 mm
Maximum hob length	100 mm
Maximum axial hob stroke	100 mm
Hob arbor diameter	Ø13 mm; optional Ø10, Ø16 or Ø22 mm
Work spindle maximum speed	500 r/min
Work spindle rated torque	17 N·m
Hob spindle maximum speed	5,000 r/min
Hob spindle rated power	5.2 kW
Hob spindle rated torque	50 N·m
Axis servo motor rated torque	X: 8 N·m; Y: 2.7 N·m; Z: 8 N·m; A: 8 N·m
CNC system	Bosch Rexroth IndraMotion MTX micro
Spindle and servo motors	Bosch Rexroth
Gear accuracy	Grade 6 per GB/T 10095-2001 for spur and helical gears with module ≤1.5 mm
Machine weight	5,000 kg
Overall dimensions (L × W × H)	2,400 × 2,000 × 2,450 mm
Optional equipment	Secondary tool-setting attachment, deburring attachment, automatic loading/unloading system

Product Details

Product Overview

The YB80 Precision CNC Horizontal Gear Hobbing Machine is designed for high-efficiency machining of small spur and helical gears. Its six-axis configuration supports four-axis simultaneous control. Maximum workpiece diameter is Ø100 mm, maximum module is 3 mm and maximum workpiece length is 220 mm.

Key Features

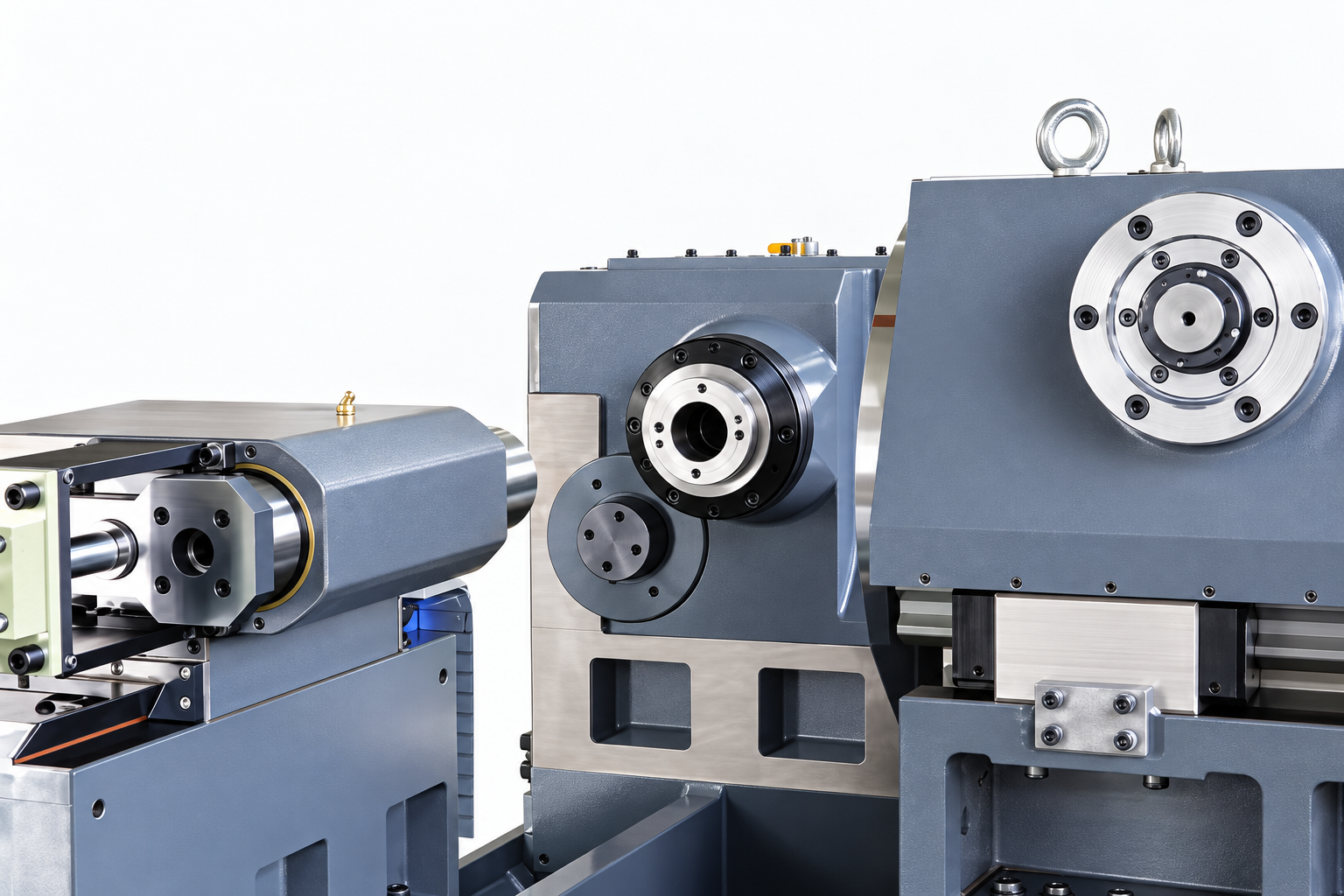

High-rigidity, one-piece cast-iron machine base.
Work-spindle drive with backlash compensation and a hob-head locking mechanism.

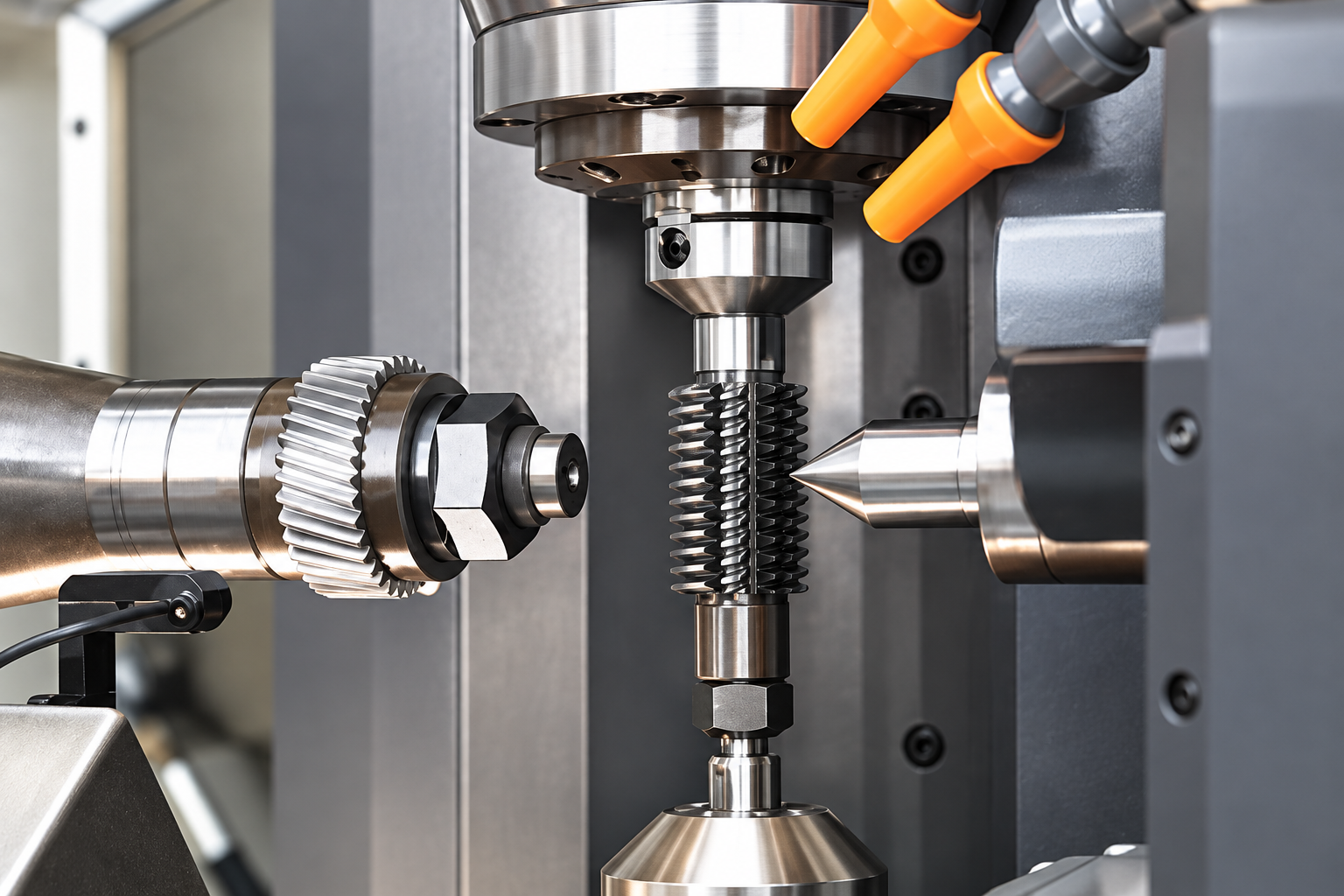

Direct servo drive for the hob spindle.
Bosch Rexroth CNC system, servo motors and servo controllers.
Optional secondary tool-setting attachment for tool resetting after roughing.
Optional deburring attachment and part-specific automatic loading/unloading system.
Dry cutting may be configured for suitable applications with appropriate tooling and process accessories.

Applications

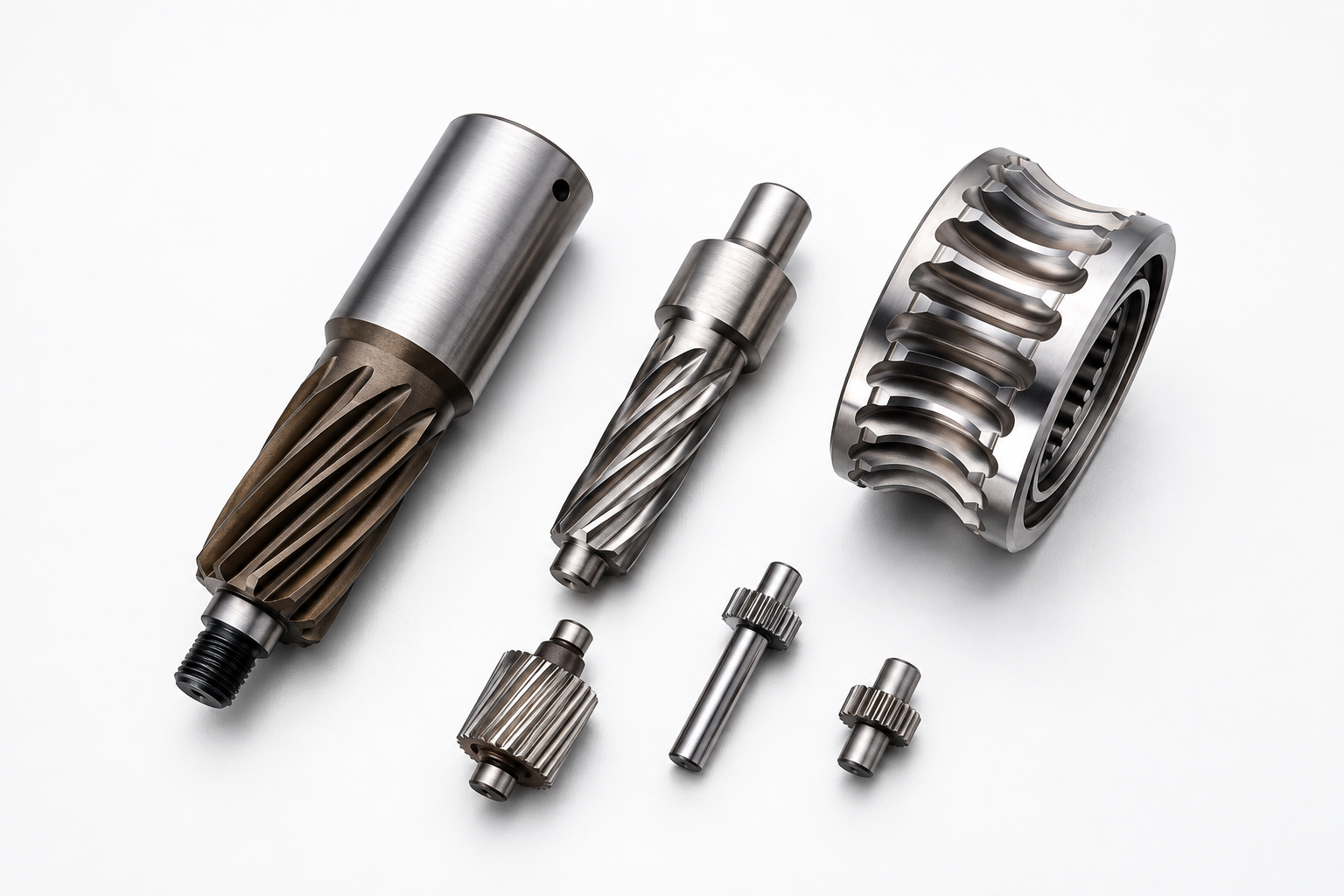

Designed for machining small spur and helical gears. Gear accuracy is specified as Grade 6 per GB/T 10095-2001 for spur and helical gears with module ≤1.5 mm. Confirm achievable accuracy and process suitability for the specific workpiece, material, tooling and production conditions.

Configuration note: Optional attachments and process capability depend on the selected machine configuration. Confirm the requirements for the intended workpiece with the manufacturer before ordering.

Interested in this product?

Send your requirement and quantity — we reply with price, lead time and technical advice within 24 hours.

Frequently Asked Questions

I can provide drawings, material and blank specifications. Can you recommend the right machine and machining route?

Yes — that is exactly how we start. Send the drawing (PDF, DWG or STEP), material grade, blank dimensions, key tolerances and your target output. Our engineers review the part geometry and process, then recommend a machine model, fixture concept and machining route, together with an estimated cycle time. We reply with a written evaluation and quotation within 24 hours.

Can my part be completed in one setup? Which operations would need other equipment?

It depends on geometry, size and accuracy, so we answer this per part, not in general. After reviewing your drawing we reply in writing: which operations are completed in one clamping, which need a second operation or a different machine, and what the recommended process chain looks like. If a part genuinely needs two setups, we say so instead of promising one-setup results.

Are cutting tools, fixtures, bar feeder and CNC programs included?

They can all be included — the delivery scope is defined line by line in our quotation. A typical turnkey package covers the machine, fixtures designed for your parts, the tooling package, bar feeder integration and CAM programs for your parts, plus a recommended consumables list. If you prefer machine only, or want to keep your existing tooling, the scope is adjusted and every included and excluded item is listed before you sign.

How do you evaluate the machining time for my parts?

We build the process route first, then calculate cycle time from tool paths and cutting data, and cross-check it with CAM simulation. The estimated time per part is stated in the proposal. During trial cutting the actual cycle time is measured; the measured result — not the paper estimate — is the basis for acceptance, so the number you plan production around is a verified one.

Can you run trial cutting with my own material?

Yes, and we recommend it. You send material or blanks; after the machine, fixtures and programs are ready we machine your parts, record cutting parameters, cycle time and tool behaviour, and provide a trial report with measurement results, photos and video. The trial schedule is agreed with you in advance, so you can attend in person or follow it remotely.
