C04P CNC Mill-Turn Machine with Automatic Loading and Unloading Robot
The C04P is a compact CNC mill-turn machine with automated workpiece loading. Its listed specifications include a 5.5 kW spindle motor, 6,000 rpm maximum spindle speed, and X-, Z-, and Y-axis travel. A 12-position live-tool turret is available depending on the confirmed machine configuration.
- MOQ: 1 set
- Brand: SIPENG CNC — Tianjin, China
- Configuration: Tooling / bar feeder / parts collection / automation
- Quotation: reply within 24 hours
Specifications
| Maximum bar capacity | Ø35 mm |
|---|---|
| Maximum turning diameter | Ø85 mm with automatic loading/unloading |
| Maximum turning length | 60 mm with automatic loading/unloading |
| CNC control | Huazhong 808; Mitsubishi E80 / M80 optional |
| Spindle nose | A2-4 |
| Spindle motor | 5.5 kW |
| Maximum spindle speed | 6,000 rpm |
| Live-tool turret stations | 12; confirm whether included or optional |
| Turret interface | BMT40 |
| X-axis travel | 200 mm |
| Z-axis travel | 260 mm |
| Y-axis travel | ±35 mm |
| X-axis ball screw designation | 3210 |
| Z-axis ball screw designation | 3210 |
| Y-axis ball screw designation | 3210 |
| Footprint (W × D) | 2,138 × 2,063 mm |
| Machine height | 2,445 mm |
| Machine weight | 2,650 kg |
| Robot unloading takt | 8 s; robot unloading only, not the complete machining cycle |
Product Details
C04P CNC Mill-Turn Machine
Machine Overview
The C04P is a compact CNC mill-turn platform configured for automated workpiece handling. The supplied document lists a workpiece-loading robot as a standard accessory. The machine has X-, Z-, and Y-axis travel and supports a maximum bar diameter of 35 mm.
Machining Capacity
- Maximum bar capacity: Ø35 mm
- Maximum turning diameter: Ø85 mm with automatic loading/unloading
- Maximum turning length: 60 mm with automatic loading/unloading
Technical Specifications
| CNC control | Huazhong 808; Mitsubishi E80 / M80 optional |
|---|---|
| Spindle nose | A2-4 |
| Spindle motor | 5.5 kW |
| Maximum spindle speed | 6,000 rpm |

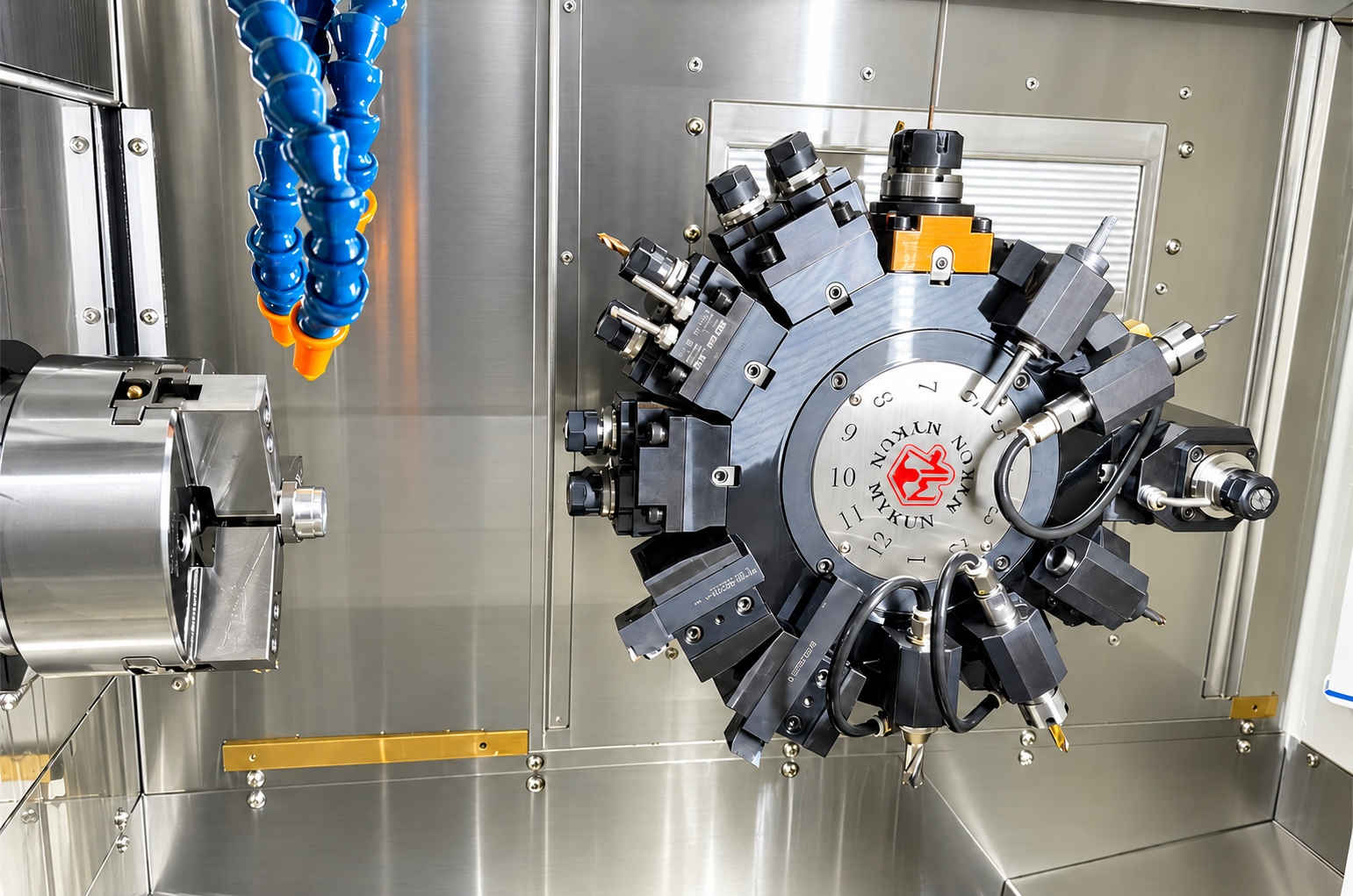

| Live-tool turret | 12 positions; confirm whether included or optional for the selected configuration |
| Turret interface | BMT40 |
| X-axis travel | 200 mm |
| Z-axis travel | 260 mm |
| Y-axis travel | ±35 mm |
| X-axis ball screw designation | 3210 |
| Z-axis ball screw designation | 3210 |
| Y-axis ball screw designation | 3210 |
| Footprint (W × D) | 2,138 × 2,063 mm |
| Machine height | 2,445 mm |
| Machine weight | 2,650 kg |
Standard Accessories
- Hydraulic rotary cylinder
- Fixed tool holders
- Coolant pump and coolant tank
- Full sheet-metal enclosure
- Automatic lubrication system
- Workpiece-loading robot
Optional Equipment
- In-process measuring device
- Online workpiece turnover mechanism
- Extended gantry robot
- Live-tool turret, subject to the confirmed machine configuration
- Mitsubishi E80 / M80 CNC control
Robot unloading takt: The source document states 8 seconds for robot unloading. This is not the complete machining cycle time. Confirm the workpiece, loading/unloading sequence, and measurement method before using this figure as a production-cycle claim.
Confirm the machine configuration and accessory scope for the intended application before ordering.
Interested in this product?
Send your requirement and quantity — we reply with price, lead time and technical advice within 24 hours.
Related Products
Frequently Asked Questions
I can provide drawings, material and blank specifications. Can you recommend the right machine and machining route?
Yes — that is exactly how we start. Send the drawing (PDF, DWG or STEP), material grade, blank dimensions, key tolerances and your target output. Our engineers review the part geometry and process, then recommend a machine model, fixture concept and machining route, together with an estimated cycle time. We reply with a written evaluation and quotation within 24 hours.
Can my part be completed in one setup? Which operations would need other equipment?
It depends on geometry, size and accuracy, so we answer this per part, not in general. After reviewing your drawing we reply in writing: which operations are completed in one clamping, which need a second operation or a different machine, and what the recommended process chain looks like. If a part genuinely needs two setups, we say so instead of promising one-setup results.
Are cutting tools, fixtures, bar feeder and CNC programs included?
They can all be included — the delivery scope is defined line by line in our quotation. A typical turnkey package covers the machine, fixtures designed for your parts, the tooling package, bar feeder integration and CAM programs for your parts, plus a recommended consumables list. If you prefer machine only, or want to keep your existing tooling, the scope is adjusted and every included and excluded item is listed before you sign.
How do you evaluate the machining time for my parts?
We build the process route first, then calculate cycle time from tool paths and cutting data, and cross-check it with CAM simulation. The estimated time per part is stated in the proposal. During trial cutting the actual cycle time is measured; the measured result — not the paper estimate — is the basis for acceptance, so the number you plan production around is a verified one.
Can you run trial cutting with my own material?
Yes, and we recommend it. You send material or blanks; after the machine, fixtures and programs are ready we machine your parts, record cutting parameters, cycle time and tool behaviour, and provide a trial report with measurement results, photos and video. The trial schedule is agreed with you in advance, so you can attend in person or follow it remotely.
