C05Y Turn-Mill Center with Automatic Loading and Unloading

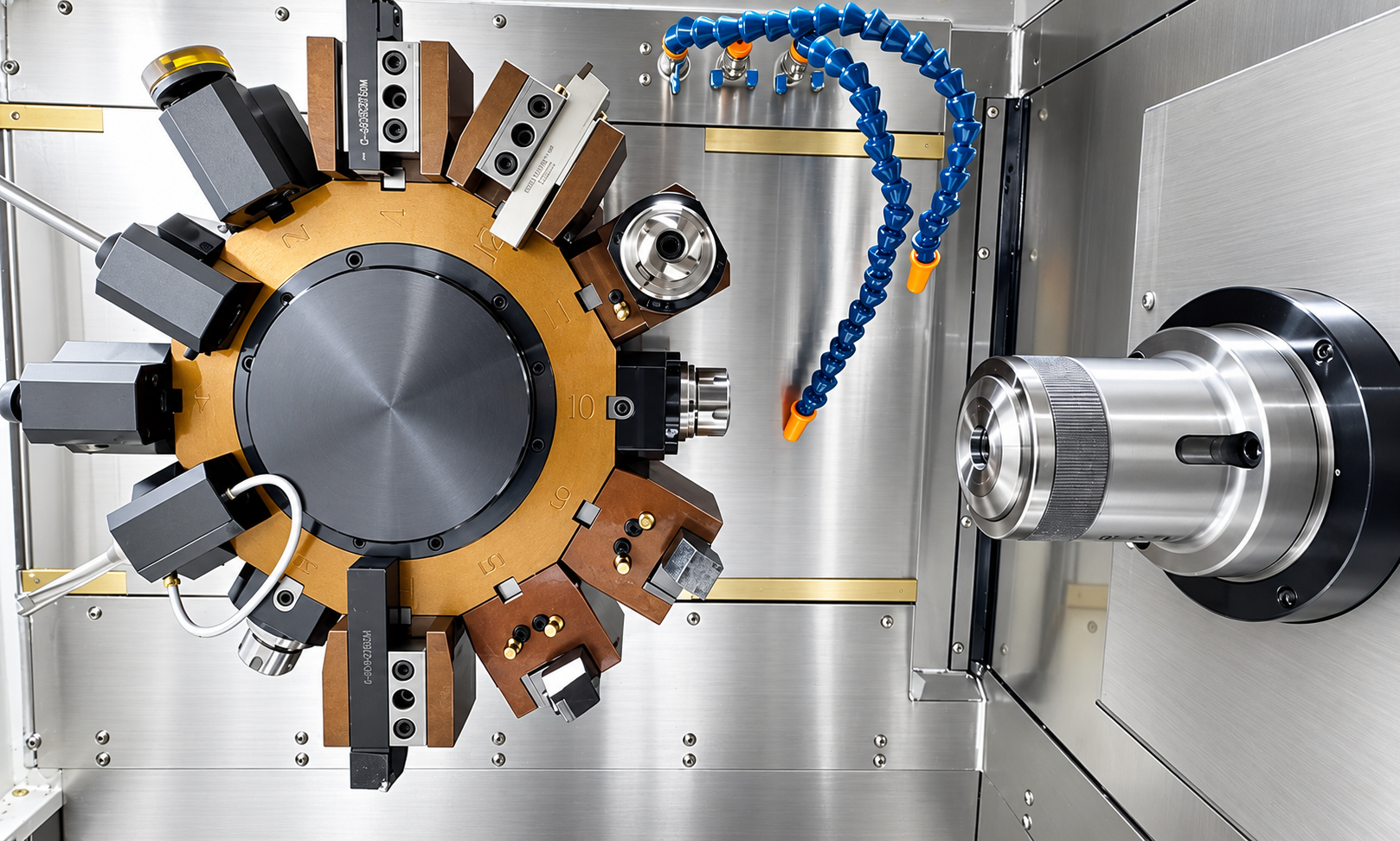

The C05Y is a CNC turn-mill center configured for automated workpiece handling. Its listed specifications include a 12-position BMT45 live-tool turret, a 56 mm spindle through-hole, a 10 kW spindle motor, and X-, Y- and Z-axis travel.
- MOQ: 1 set
- Brand: SIPENG CNC — Tianjin, China
- Configuration: Tooling / bar feeder / parts collection / automation
- Quotation: reply within 24 hours
Specifications
| Model | C05Y; confirm model designation before publication |
|---|---|
| Maximum bar diameter | 45 mm |
| Maximum turning diameter | 200 mm / 150 mm with automatic loading/unloading, as listed |
| Maximum turning length | 120 mm / 80 mm with automatic loading/unloading, as listed |
| CNC system | Huazhong 808 / Mitsubishi E80 / M80; confirm configuration |
| Spindle interface | A2-5 |
| Spindle through-hole | 56 mm |
| Spindle motor rating | 10 kW |
| Spindle speed | 50-4,000 rpm |
| Live-tool turret | 12 positions, BMT45 |
| X-axis travel | 185 mm |
| Y-axis travel | ±50 mm |
| Z-axis travel | 280 mm |
| Ball-screw designation | X, Y and Z axes: 3210; unit not stated |
| Machining accuracy grade | IT7, as listed; feature and assessment conditions not stated |
| Roundness | 0.004 / Ø80, source notation; unit and test method not stated |
| Flatness | 0.003 / Ø80, source notation; unit and test method not stated |
| Surface roughness | Ra 0.20 μm, as listed |
| Positioning accuracy | X/Z axes: 0.005 mm |
| Repeat positioning accuracy | X/Z axes: 0.003 mm |
| Machine footprint | 2,320 × 1,820 mm |
| Overall height | 2,635 mm |
| Machine weight | 3,300 kg |
| Robot unloading cycle | 8 s; test conditions not defined; not the complete machining cycle |
Product Details
C05Y Turn-Mill Center with Automatic Loading and Unloading
Machine Overview
The C05Y is a turn-mill center configured for automated workpiece handling and multi-operation machining. The specification table lists a 12-position BMT45 turret, a 56 mm spindle through-hole, and X-, Y- and Z-axis travel. A loading robot is listed among the standard accessories.
Machining Capacity
- Maximum bar diameter: 45 mm
- Maximum turning diameter: 200 mm; 150 mm with automatic loading/unloading, as listed
- Maximum turning length: 120 mm; 80 mm with automatic loading/unloading, as listed
Confirm the automatic-mode capacity values and the applicable workpiece and loading conditions for the ordered configuration.
Technical Specifications
| CNC system | Huazhong 808 / Mitsubishi E80 / M80; confirm the selected configuration |
|---|---|
| Spindle interface | A2-5 |
| Spindle through-hole | 56 mm |
| Spindle motor rating | 10 kW |
| Spindle speed | 50-4,000 rpm |
| Live-tool turret | 12 positions, BMT45 |
| X-axis travel | 185 mm |
| Y-axis travel | ±50 mm |
| Z-axis travel | 280 mm |
| Ball-screw designation | X, Y and Z axes: 3210; unit not stated in the source |
| Surface roughness | Ra 0.20 μm, as listed in the source |
| Positioning accuracy | X/Z axes: 0.005 mm |
| Repeat positioning accuracy | X/Z axes: 0.003 mm |
| Machine footprint | 2,320 × 1,820 mm |
| Overall height | 2,635 mm |
| Machine weight | 3,300 kg |
Standard Accessories
- Rotary hydraulic cylinder × 1
- Fixed tool holders
- Coolant pump and coolant tank
- Full sheet-metal enclosure
- Automatic lubrication system
- Loading robot
Optional Equipment
- External material magazine
- Automatic chip conveyor
- In-process inspection system
- In-line part turning unit
- Extended gantry robot
- Live-tool holder
Robot unloading cycle: The source document states an 8-second robot unloading cycle but does not define the measurement start/end points or test conditions. This is not the complete machining cycle time.
Confirm the supplied machine model, CNC configuration, accessory scope, workpiece capacity, and measurement conditions before quotation or ordering.
