TM32 CNC Turning and Milling Center

The TM32 CNC Turning and Milling Center is a compact multi-operation platform for precision small-part production. It supports turning, milling, drilling and tapping, with a maximum bar capacity of Ø32 mm, a maximum machining length of 200 mm and live tooling up to 5,000 rpm.

MOQ: 1 set
Brand: SIPENG CNC — Tianjin, China
Configuration: Tooling / bar feeder / parts collection / automation
Quotation: reply within 24 hours

WhatsApp Quote Send Inquiry Email Us

Specifications

Model	TM32
Maximum bar capacity	Ø32 mm
Spindle through-hole diameter	Ø33 mm
Maximum machining length	200 mm
Spindle power	6.3 kW
Maximum spindle speed	6,000 rpm
Spindle runout	0.002 mm
C-axis resolution	0.001°
Maximum drilling diameter	Ø12 mm
Maximum tapping size	M10
Spindle center height	1,050 mm
X / Y / Z rapid traverse	24 / 18 / 24 m/min
X / Y / Z travel	360 mm (radius) / 170 mm / 360 mm
Repeat positioning accuracy	0.003 mm
OD turning tool size	□16 mm
Maximum boring bar diameter	Ø25 mm
Live-tool units	3 end-face / 4 side-mounted
Live-tool interface	ER16
Maximum live-tool speed	5,000 rpm
CNC control	XinDai high-end CNC system
Stated axis capability	Five-axis capability with four-axis simultaneous control; confirm the quoted configuration
Machine weight	1,950 kg
Overall dimensions (L × W × H)	1,720 × 1,350 × 1,680 mm

Product Details

Product Overview

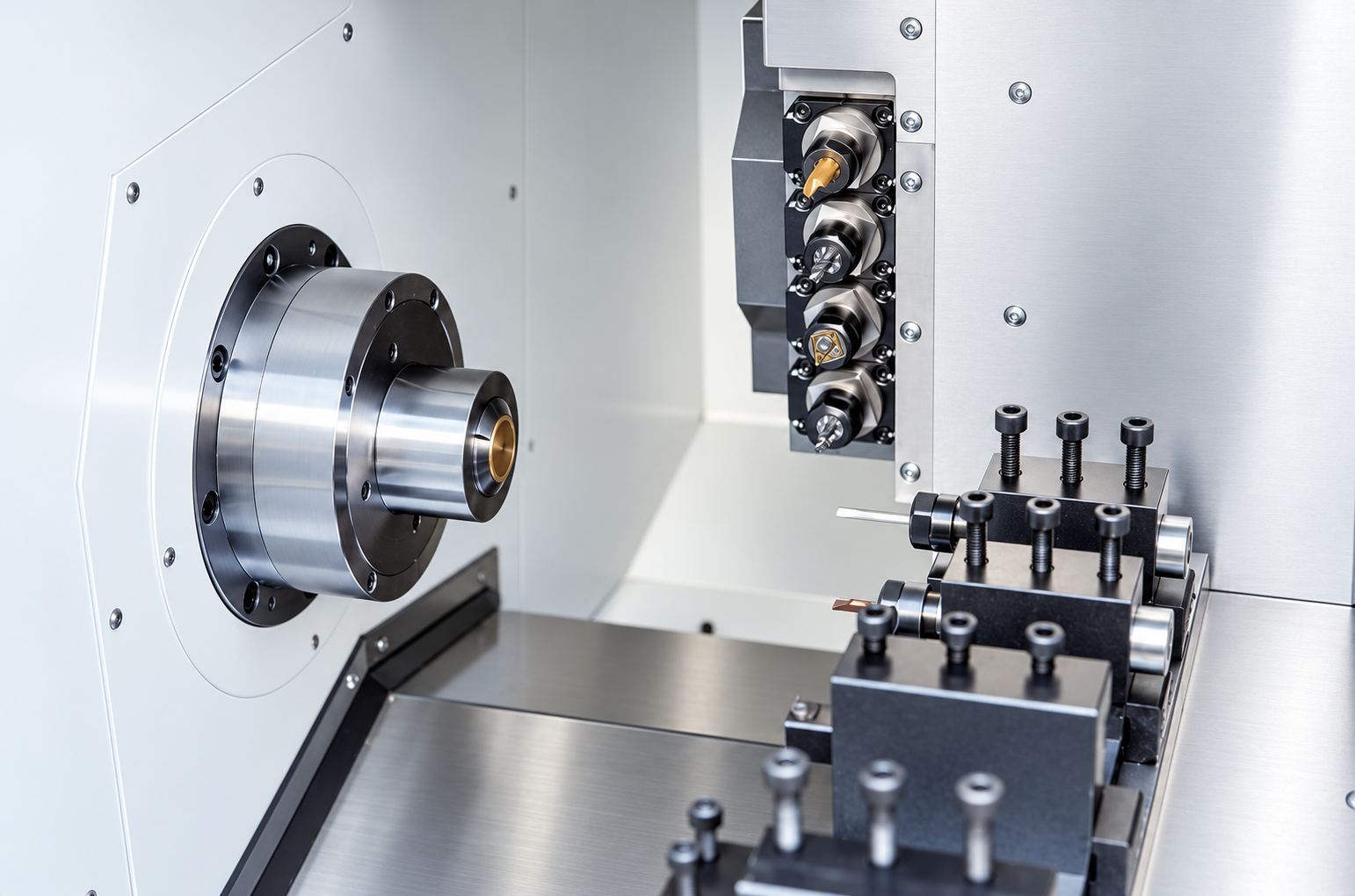

The TM32 CNC Turning and Milling Center is designed for machining complex, compact and high-precision components. Its spindle, gang-tool arrangement and live tooling support turning, milling, drilling and tapping operations.

Key Features

Maximum bar capacity of Ø32 mm and maximum machining length of 200 mm.
High-speed servo spindle with imported ultra-precision angular-contact bearings.
Stated spindle runout of 0.002 mm and repeat positioning accuracy of 0.003 mm.
Three end-face and four side-mounted live-tool units, with ER16 interfaces and speeds up to 5,000 rpm.
XinDai CNC system; the supplied material describes five-axis capability with four-axis simultaneous control.
One-piece Meehanite cast-iron bed, servo-driven feed axes, precision roller screws, linear guides and automatic lubrication.
Optional automatic bar feeder or automatic loading/unloading mechanism.

Applications

Suitable for evaluating complex small precision components for communications, electronics, automotive, toys, medical devices, instrumentation and aerospace applications. Final process suitability depends on the part drawing, material, tolerances, tooling and machine configuration.

Configuration note: Specifications and options are subject to confirmation. Please verify the current machine configuration, CNC functions, tooling arrangement and performance requirements with the supplier before ordering.

Interested in this product?

Send your requirement and quantity — we reply with price, lead time and technical advice within 24 hours.

Frequently Asked Questions

I can provide drawings, material and blank specifications. Can you recommend the right machine and machining route?

Yes — that is exactly how we start. Send the drawing (PDF, DWG or STEP), material grade, blank dimensions, key tolerances and your target output. Our engineers review the part geometry and process, then recommend a machine model, fixture concept and machining route, together with an estimated cycle time. We reply with a written evaluation and quotation within 24 hours.

Can my part be completed in one setup? Which operations would need other equipment?

It depends on geometry, size and accuracy, so we answer this per part, not in general. After reviewing your drawing we reply in writing: which operations are completed in one clamping, which need a second operation or a different machine, and what the recommended process chain looks like. If a part genuinely needs two setups, we say so instead of promising one-setup results.

Are cutting tools, fixtures, bar feeder and CNC programs included?

They can all be included — the delivery scope is defined line by line in our quotation. A typical turnkey package covers the machine, fixtures designed for your parts, the tooling package, bar feeder integration and CAM programs for your parts, plus a recommended consumables list. If you prefer machine only, or want to keep your existing tooling, the scope is adjusted and every included and excluded item is listed before you sign.

How do you evaluate the machining time for my parts?

We build the process route first, then calculate cycle time from tool paths and cutting data, and cross-check it with CAM simulation. The estimated time per part is stated in the proposal. During trial cutting the actual cycle time is measured; the measured result — not the paper estimate — is the basis for acceptance, so the number you plan production around is a verified one.

Can you run trial cutting with my own material?

Yes, and we recommend it. You send material or blanks; after the machine, fixtures and programs are ready we machine your parts, record cutting parameters, cycle time and tool behaviour, and provide a trial report with measurement results, photos and video. The trial schedule is agreed with you in advance, so you can attend in person or follow it remotely.
